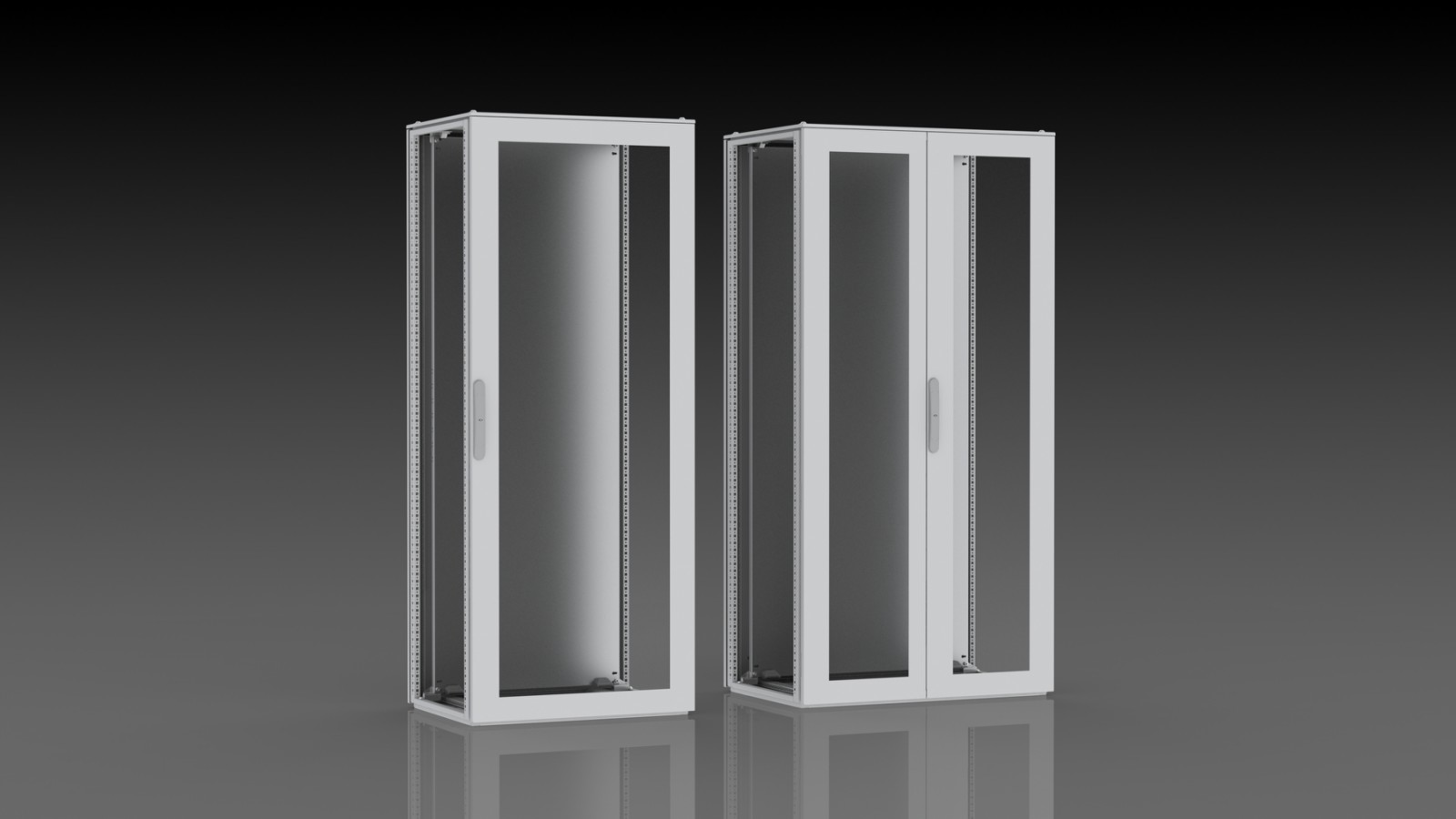

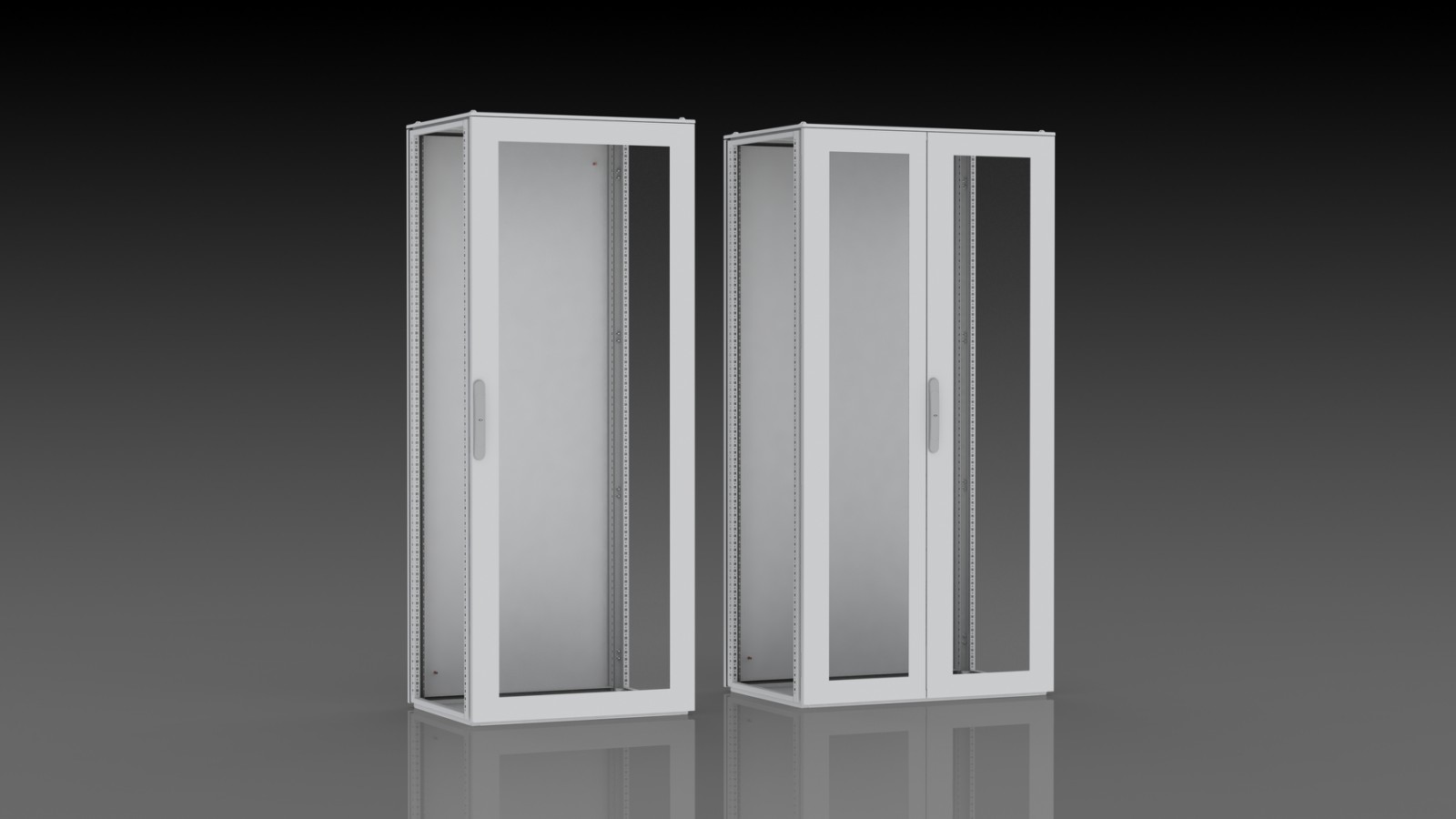

Enclosure CX glass door, rear wall
Article:
Enclosure CX glass door, rear wall
Article:
Description
The frame with a glazed door, a rear panel, and a ceiling panel made of painted sheet steel. IP55 protection rating.
Technical specifications
Protection class
IK08, IP55
Un, B
1000
In, A
2500
Load, kg
800
Construction type
welded steel frame
Material
body: sheet steel
Surface
frame, doors, walls – structural powder coating RAL 7035
Lock
lock
Hinge
opening angle up to 120°
Supply kit
frame with ceiling panel, grounding kit, key, observation door, packaging, rear wall
